P425 | Doosan Portable Power

P425 LE

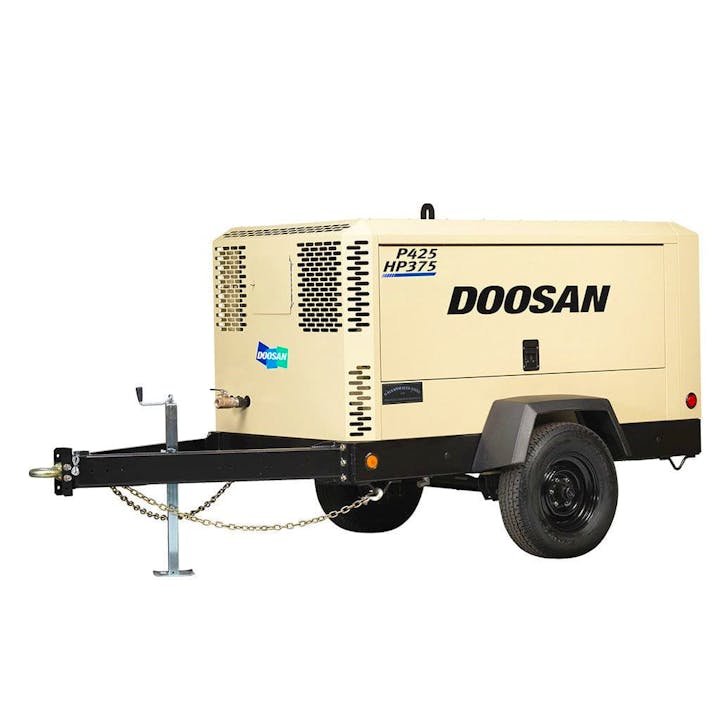

The two-in-one P425/HP375WCU-T4F portable air compressor from Doosan Portable Power is built for high performance and versatility. Delivering airflow ranging from 375 to 425 cfm and adjustable pressure from 100 to 150 psi, this unit offers flexibility for a variety of tasks and job sites. Powered by a reliable Cummins F3.8L engine, it features a compact design with a 69.9 in. height, 152.5 in. length, and 78.2 in. width. The 60-gal. fuel tank and 4,776 lb. weight help ensure ease of transport and continuous operation. Its ability to be mounted on truck beds further enhances its adaptability, making the P425/HP375WCU-T4F a powerful solution for demanding applications.

Specification	Low Pressure	High Pressure
COMPRESSOR
Type	Rotary Screw / Single-Stage
Free Air Delivery	425 CFM (12.0 m³/min)	375 CFM (10.6 m³/min)
Rated Operating Pressure	100 psig (6.9 bar)	150 psig (10.3 bar)
Pressure Range	80–175 psig (5.5–12.1 bar)
Air Discharge Outlet Size	1.25 in (31.8 mm)
Air Discharge Outlet Quantity	1
ENGINE
Make / Model	Cummins / QSB4.5
Emissions Tier Level	Tier 4 Final (T4F)
Number of Cylinders	4
Displacement	272 cu in (4.5 L)
Rated Speed	2,200 RPM	1,950 RPM
Idle Speed	1,500 RPM
BHP @ Rated Speed	130 HP (97 kW)	138 HP (102.9 kW)
Electrical	24V
Hours of Operation @ Full Load	10.9 hr	10.6 hr
CAPACITIES
Fuel Tank Capacity	60 gal (227 L)
DIMENSIONS (with Running Gear)
Length	152.5 in (3,874 mm)
Width	78.2 in (1,986 mm)
Height	69.9 in (1,775 mm)
Track Width	66.6 in (1,692 mm)
Tire Size	15 in
Shipping Weight (w/o fuel)	4,470 lbs (2,027 kg)
Working Weight (w/ fuel)	5,030 lbs (2,281 kg)
DIMENSIONS (without Running Gear)
Length	104.2 in (2,647 mm)
Width	60.7 in (1,542 mm)
Height	61.0 in (1,549 mm)
Shipping Weight (w/o fuel)	4,207 lbs (1,908 kg)
Working Weight (w/ fuel)	4,767 lbs (2,162 kg)
